Description
The Lincoln Square Wave TIG 200 Welder (K5126-1) is the hottest TIG welder on the market right now. Operators of all skill levels are flocking to the Square Wave TIG 200 thanks to its easy of set up, ease of use, and the ability to dial in the settings to adapt to nearly any application. No matter your skill level, you wont be disappointed. The Square Wave TIG 200 provides smooth and stable AC TIG welding on aluminum and DC TIG welding on steel, stainless steel and chrome-moly. A user-friendly interface enables the operators to set it, forget it and weld. The square wave 200 has advanced features, yet is easy to use with its simple user interface & pulse feature. It has high frequency starting which makes it an ideal aluminum tig welder. It features built-in settings for more cleaning action & allows for wider or tighter arc configurations. Offers both tig & stick functionality. You can take this welder on the road since it only weighs 46lbs & utilizes both 120V or 230V plugs. This Square Wave 200 will TIG weld up to 316 Aluminum or 316 Steel.
Features
ACDC TIG & Stick welding capabilities
200 amps output
Extremely portable Only 46 lbs
Quick Specs
Input Power 120 or 230 Volt, Single Phase, 60 Hertz
Output Range 120V = Tig (10-125A), Stick (10-110A)
Output Range 230V = Tig (10-200A), Stick (10-170A)
Rated Output 230V = Tig (200A @ 25%), (130A @ 60%)
AC Frequency Range 60-150HZ
AC Balance 60-90 (%Electrode Negative)
Pulse 0.1-20 (Pulses per Second)
Weight 46 lbs (21kg)
Dimensions 14h X 10.75w X 19.25d (358 X 282 X 502mm)

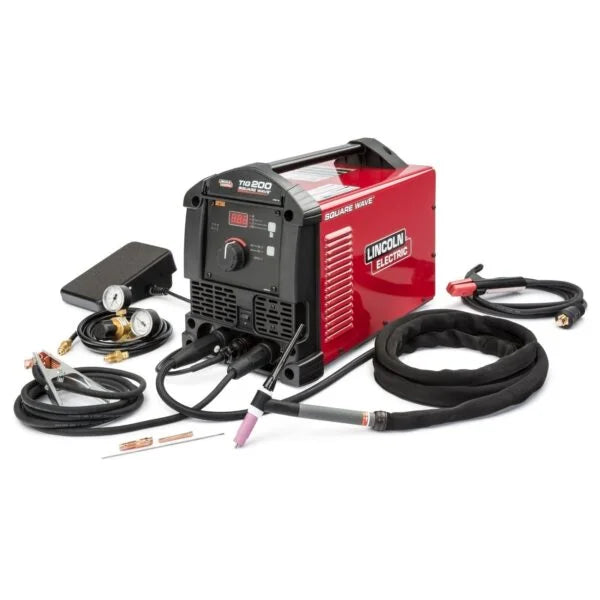

Includes
Square Wave 200 Welder
PTA-17 Series 150 Amp Air-cooled TIG torch w flexible head & ultra-flex cable assembly
Foot Amptrol
RegulatorFlowmeter with gas hose
Stick Electrode Holder
Ground Clamp
120230V Input Cords
