Description
The ESAB Fabricator 141i Multi Process Welding System (W1003141) continues the legacy that Thermal Arc has established in the industry. The ESAB Fabricator Series, with its leading technology has set a new standard for portable welding equipment delivering 3-in-1 MIG, TIG, and Stick capability from one integrated, portable system. Warranty 3 Years Limited Warranty
Three Process Capability
MIG (GMAWFCAW), STICK (SMAW), TIG if you purchase a TIG Torch (GTAW).
MIG
Infinite Voltage Control for precise voltage settings.
Inductance Control for arc stability and spatter control.
Tweco Fusion MIG Gun w10 ft cable and industry standard #4 connection.
Durable Metal Feed Plate features 2 roll drive system, quick change reversible drive rolls and easy-to-set single scaled wire tension knob.
4 or 8 Spool Capacity allows easy installation of wire spool sizes.
Spool Gun ready.
Adjustable Burnback Control.
STICK
Adjustable Arc Force Control for optimum STICK electrode performance.
Built in Hot Start for easy arc starting.
TIG
Must purchases Torch W4013802 to be able to TIG.
Lift TIG Start Provides TIG arc starting without use of high frequency.
Downslope Eliminates the crater that can form at the completion of a weld.
Other Features
Digital Meters Voltage and Amperage; Preview and Hold capability.
Excellent Portability Lightweight, less than 33 lbs includes shoulder strap.
Comprehensive Setup Chart Weld set up guide for optimum welding performance over a wide range of materials and shielding gases.
Trigger Control 4T (Latch) eliminates operator fatigue.
Remote Receptacle Enables connection of remote control devices and Spool Gun.
Quick Change Polarity Simple quick change polarity (no tools required) from the front of the power source.
Overload Protection Shuts down the power source to protect the internal electrical components from overheating.
IP23S Suitable for outdoor use.
Intelligent Fan Control Operates when welding commences to cool components & reduce airborne contaminants pulled through the power source.

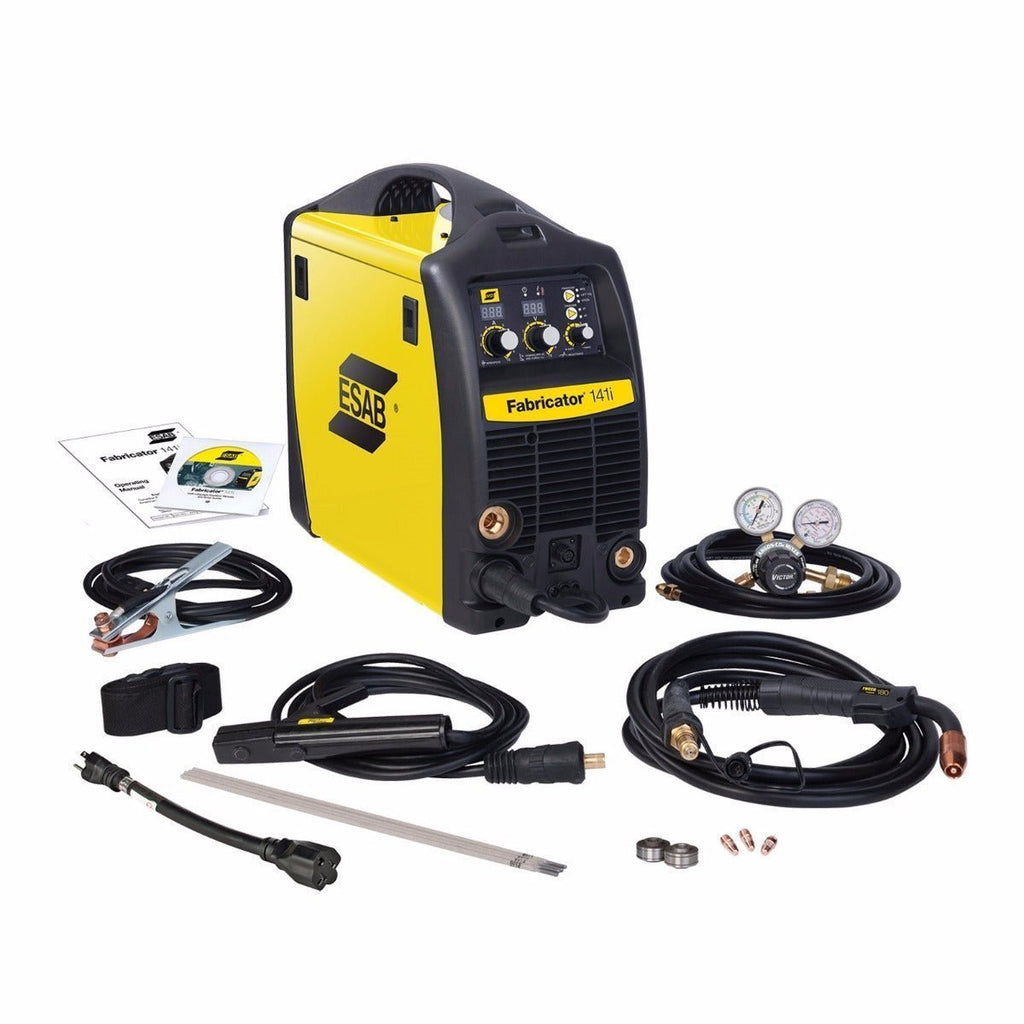

Comes Complete with
Fabricator 141i Power Supply
10 ft Tweco Fusion 140 Amp MIG Gun
Victor Argon RegulatorGauge and 12.5 ft (3.8 m) Hose
Electrode Holder with 13 ft (4 m) Lead
Ground Clamp with 10 ft (3 m) Lead
4 General Purpose Stick Electrodes (E6013)
Operators Manual & CD
10 ft (3 m) Power Cord and NEMA 5-20P 115V AC Plug
Power adapter 115V, 20A to 15A
Shoulder Strap
Bonus Contact Tips (1 each)
.023 (0.6 mm)
.030 (0.8 mm) Installed
.035 (0.9 mm)
Drive Rolls
.023 .030 (0.6 mm 0.8 mm) V Groove (Installed)
.030 .035 (0.8 mm 0.9 mm) for Flux Cored Wire
